NegAir 5000S

placeholder
NegAir 5000S

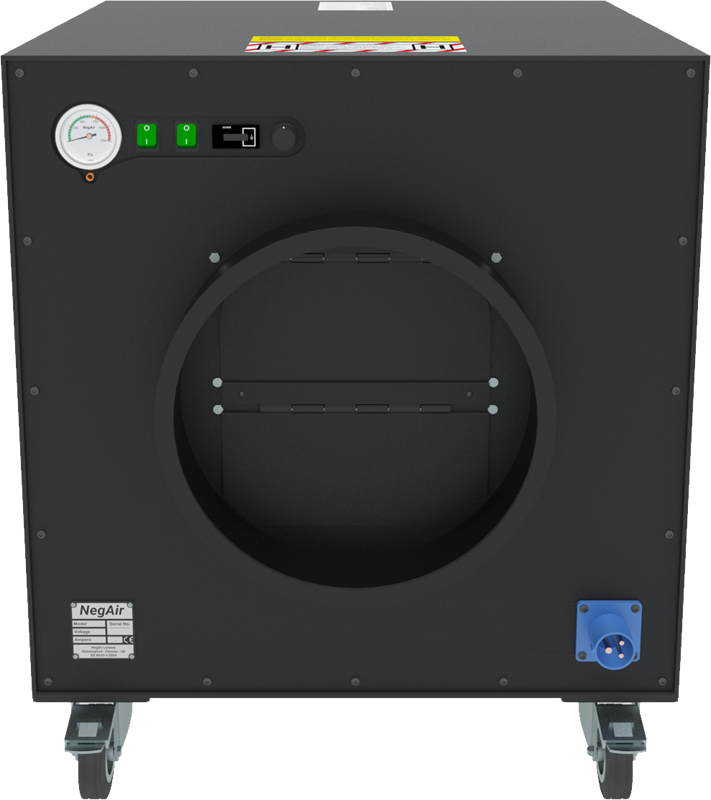

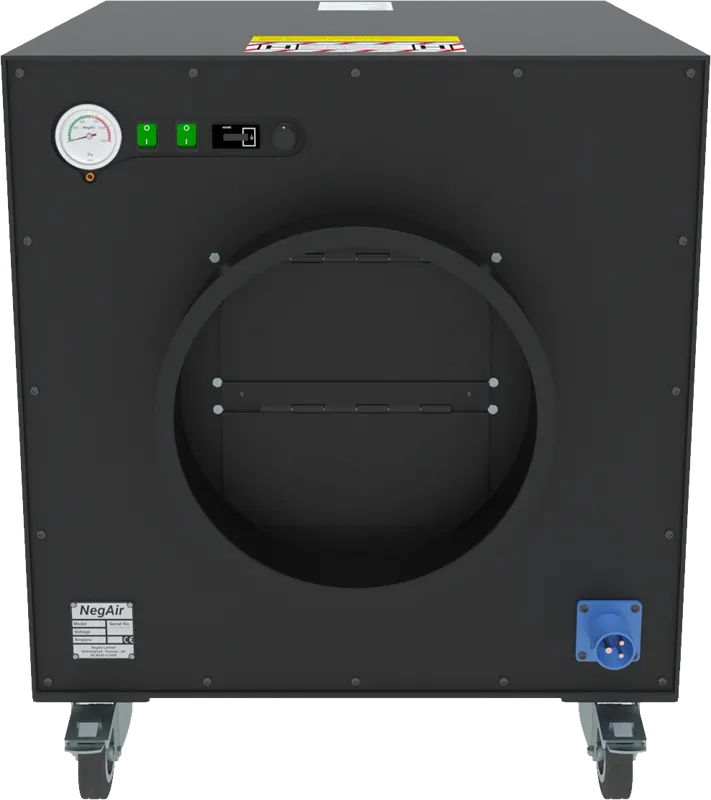

Hour Counter Manometer On/Off Switch Speed Control Heavy Duty 100mm Castors Non Return Flap Power Connector
placeholder
NegAir 5000S

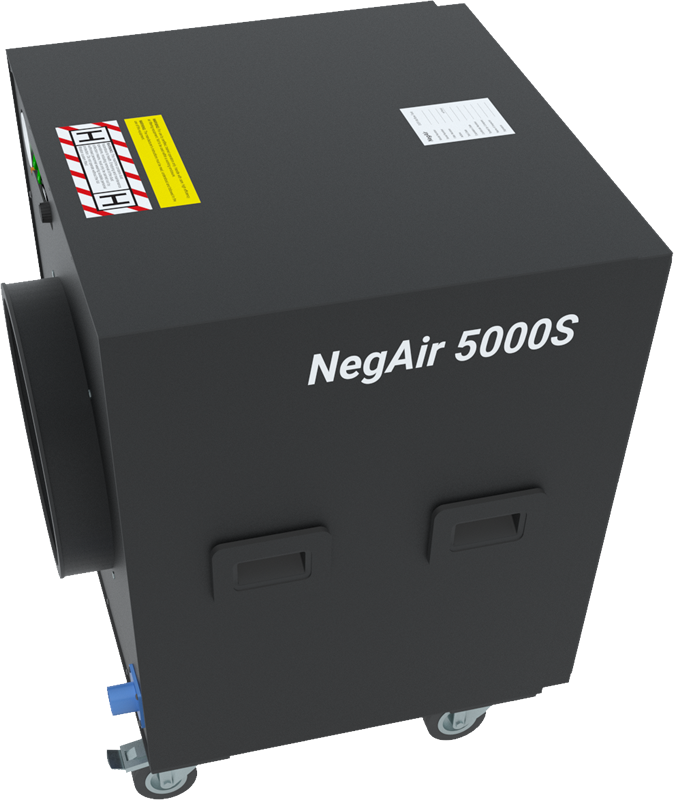

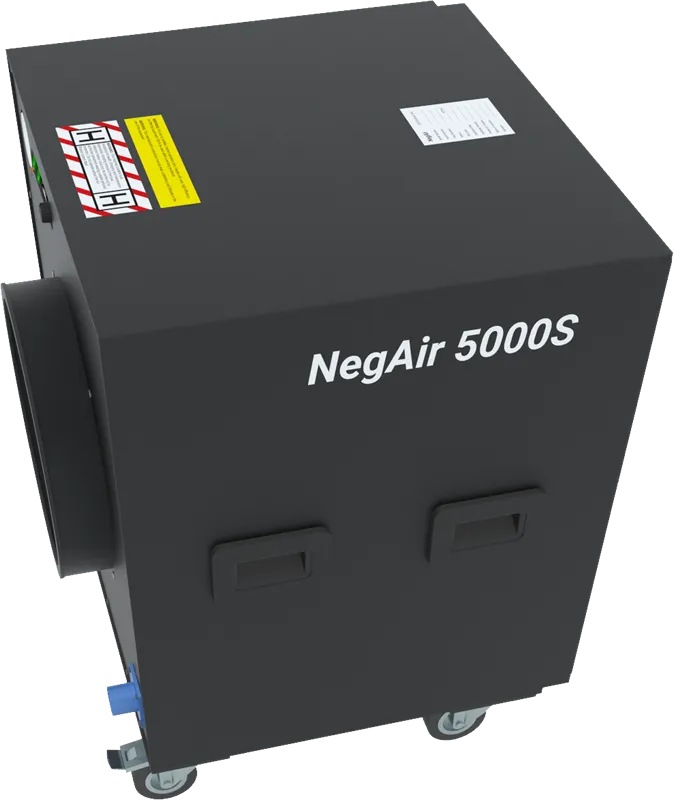

Smooth Deep Grip Handles
NegAir 5000S

NegAir 5000S

The NegAir 5000S offers all the robust features of the NegAir 2000S but with a higher capacity for larger projects. It includes 100mm heavy-duty industrial castors for easy mobility, with two lockable for stable positioning. This model also features smooth deep grip handles and rigid flaps to prevent backdraft, ensuring efficient operation.

Additionally, the NegAir 5000S is equipped with a comprehensive control system featuring an hour counter, speed control, manometer, and an illuminated on/off switch.

Available in both 110V and 230V configurations and conforms to BS8520 standards.

Nominal airflow 5000 m³/hour
Main filter dimensions 610 x 610 x 292mm
Prefilter dimensions 600 x 600 x 50mm
Machine dimensions (width x height x length) 735 x 850 x 740mm
Spigot diameter 400mm
Spigot length 76mm
Weight (no filters) 57kg
Weight (with filters) 75kg
Voltage 240v (110v)
Current 16A (32A)
Noise level (measured at a distance of 1m without ducting) 86 dBA
Body material Black ABS
Manometer (0-1250pa) check
Hour counter check
Variable speed control check
Illuminated on/off switch check
Filter alarm close
Stackable close
Roving filter box Optional
Double HEPA Optional
